Infrared Touch Screen Overlay

Brief Introduction

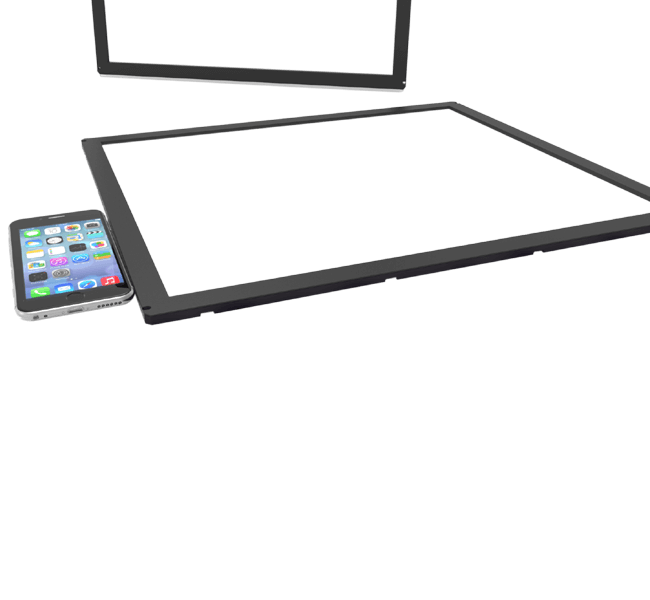

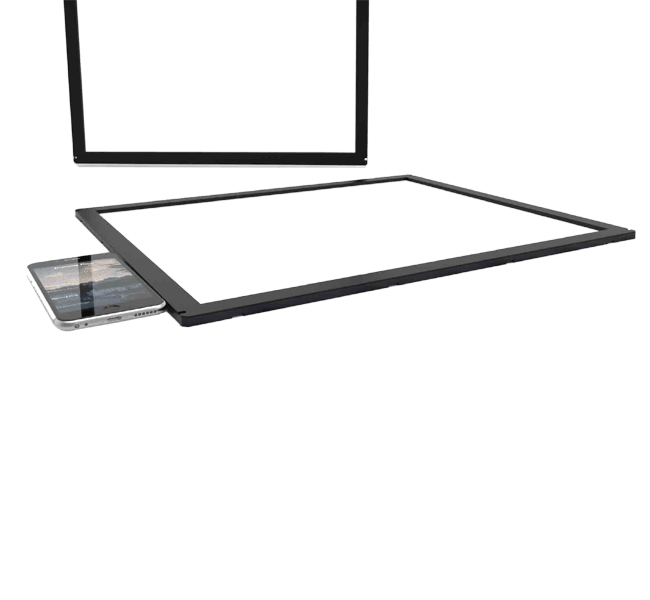

SDTECH QS-series is meticulously crafted for small-sized devices ranging from 15″ to 23.6″,available in sizes: 15″, 17″, 19″, 21.5″, 22″, and 23.6″. It ensures a clear display even under sunlight, and its stable performance eliminates operational lag. It supports 4-point multi-touch and smooth writing, enabling seamless execution of complex operations like zooming and rotating, thus facilitating more efficient collaboration among multiple users.

It offers stable performance and anti-glare capabilities, ensuring smooth operation even under direct sunlight.

Featuring 4-point multi-touch and gesture recognition, it enables seamless operations like zooming, rotating, page turning, dual-pen writing, and dragging. The writing experience is fast and fluid.

The Infrared Touch Screen Overlay are widely applied in ATMs, factory automation, plant control systems, ticketing machines, medical equipment, kiosks, POS systems, interactive whiteboards, large-scale applications, and office automation.

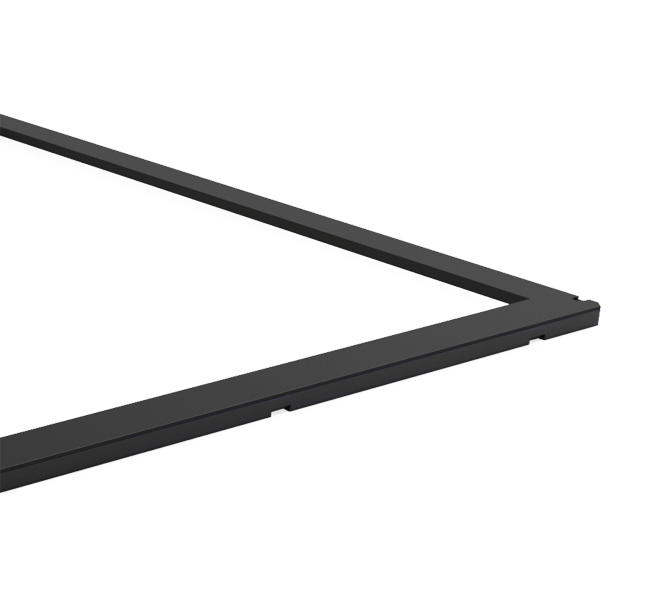

An infrared touch screen comprises an LCD monitor, an IR touch frame, and an infrared touch overlay. Typically, the overlay is a protective glass surrounded by the IR touch frame, which houses infrared LEDs and photodetectors. An optical bezel inserted between the glass and the frame secures the frame and transmits the infrared light from the LEDs. IR LEDs emit invisible infrared beams through the optical bezel, creating a grid on the overlay’s surface. Photodetectors, positioned opposite the LEDs, detect any interruptions in the beams caused by touch events on the overlay.

Specification

Technical Parameters
