Introduction
- Infrared touch uses light emitting diodes and sensors that are embedded in a bezel around the display and emit and detect rows and columns of infrared light across the face of the display.

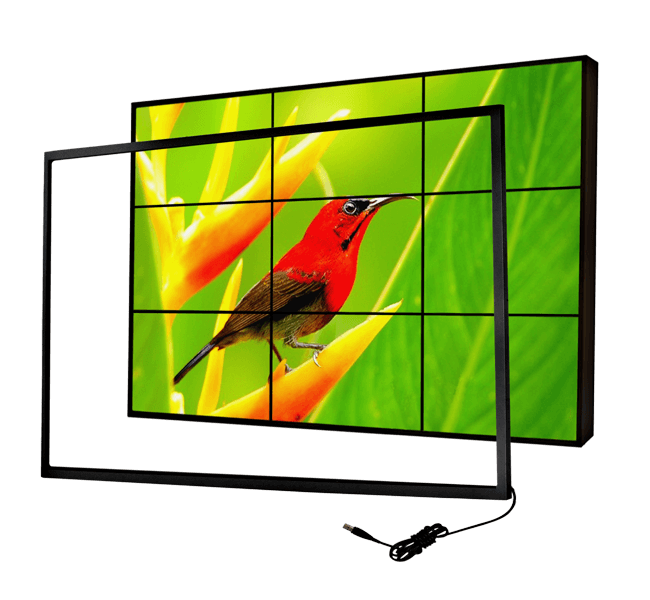

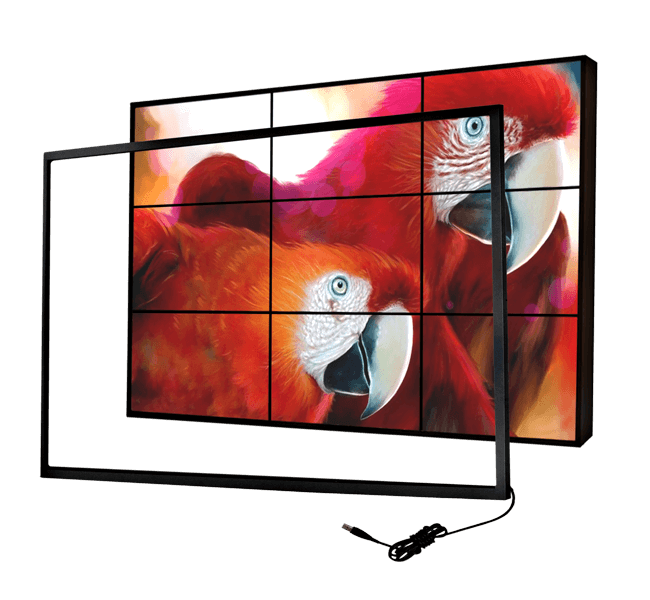

- Retrofit touch screen overlay kits to add multi-touch functionality to any screen technology (IR overlay) . Whether it’s a new touch display installation, or retrofitting touch to an existing screen, video wall or table, an Interactive Touch Frame is the perfect choice.

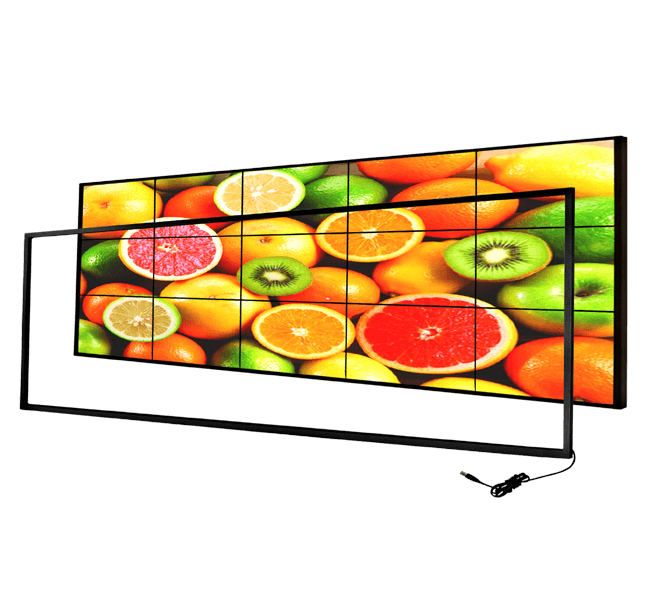

- SDTECH P-series Infrared touch screen is designed specifically for large size videowall and whiteboard solutions.
- Stable product performance, anti-glare which can working properly under direct sunlight.
- Full tube design, supports multi-points touch and gesture recognition, easy to make the objects zoom out/in, rotate, page turning, dual pens writing, drag and other operation, writing fast and fluently.
Features
- 98-800inch.
- 6/10/16/20/32/40/50 multi-touch optional.
- Support WINDOWS, MAC, Android and Linux systems.
- Any customizable size is acceptable.

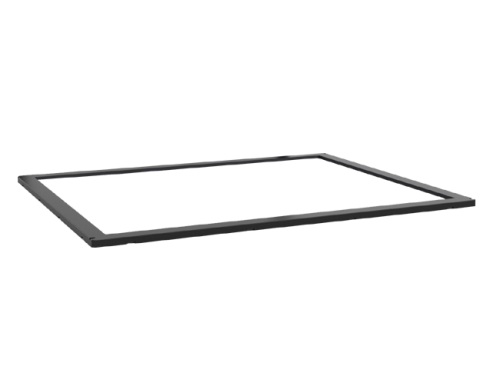

- Touch screen Frame (overlays) are simple framed glass covers, only they have the touch capability to change any normal TV or display monitor into a touch screen within minutes. Such an overlay is fitted over a display monitor and connected to the monitor either through infrared or USB and touch sensors.
Electrical Parameters
| Output solution | 32767*32767(Physical resolution depends on the size) |
| Touch precision | 2.2mm(Center distance of the tube is 4.3mm) |
| Diameter of minimum touch objects | >5mm |
| Touch height | <2mm |
| Output form | Output of touch coordinate |
| Response speed | 2~5ms |
| Multi-touch capacity | Distance >10mm |
| Power requirement | Voltage DC 5V±5%,500mA |
| Power consumption | <1W,regular consumption is 0.6W(DC5Vpower supply condition) |
| Power supply | USB Power supply, PS/2 power supply( For RS232) |
| Interface form | USB2.0 full speed |
| Plug and play | Supports plug and play( for standard USB products only) |
